Pacth Panel to CSU
SDSC custom RJ-48 (8 pin) to RJ-11 (4 pin)
Step 1. Cut cable to length.
Step 2. Pull back sheath untill about 3/4 to 1 inch of wire is
showing.
Step 3. Trim the pairs that you arent going to use.
Step 4. Pull sheath to original position, the wires should be
well behind the edge.
Step 5. Strip the cable normaly and seperate the wires.
Step 6. Move the wires into the correct position and crimp.
Telco T1 or equal grade of wire.

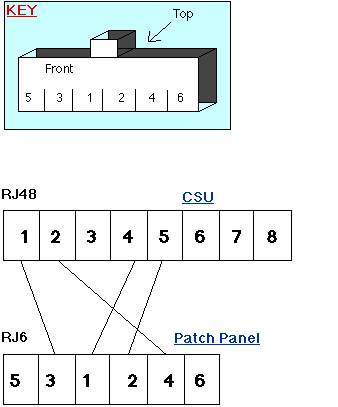

RJ-48 (Telco spec) Pinout
TOP
GR
#1
|
GR/W
#2
|
none
#3
|
BLU
#4
|
BLU/W
#5
|
none
#6
|
none
#7
|
none
#8
|
RJ-11 Pinout
TOP
none
#5
|
GR/W
#3
|
BLU
#1
|
BLU/W
#2
|
GR
#4
|
none
#6
|
